For model Color 122M W56K102 /05 Ch= K9, Horny (Hornyphon); Wien:

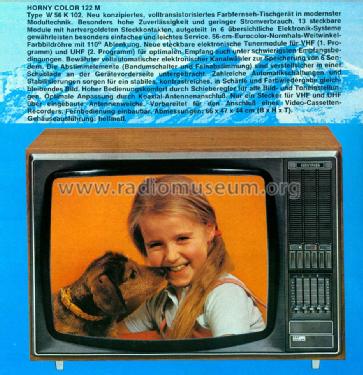

Hornyphon Programm 1973/74

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1973–1976 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A56-140X or A56-410X
Semiconductors (the count is only for transistors) 56:
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Color 122M W56K102 /05 Ch= K9 - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 470 x 440 mm / 26 x 18.5 x 17.3 inch
Notes

Empfangsbereich: VHF/UHF
6 Programmtasten.
Tonblendenschalter für Sprache/Musik.
Anschlüsse für Aussenlautsprecher oder Kopfhörer. Einbaumöglichkeit für VCR-Anschluss und Kabelfernbedienung.
Gehäuseausführung: Nuss/hell-matt.

Parallelgerät zum Philips A22K201.

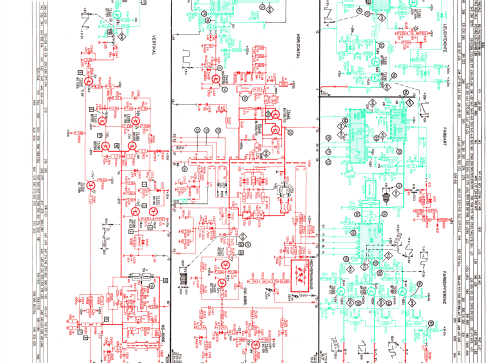

2 Chassisausführungen, ab Baujahr 1975 mit geändertem Netzteil, siehe Schaltpläne.



Net weight (2.2 lb = 1 kg) 32 kg / 70 lb 7.8 oz (70.485 lb)
Source of data -- Original prospect or advert

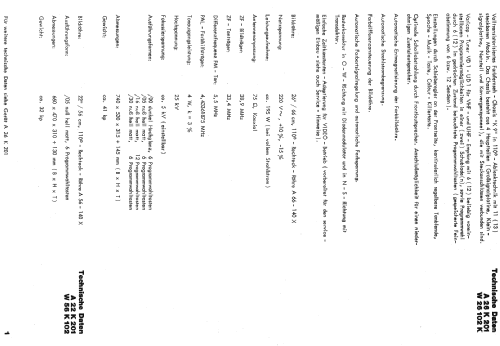

Literature/Schematics (1) -- Original-techn. papers. (Hornyphon Programm 1975/76 Seite 2)

Model page created by Franz Scharner. See "Data change" for further contributors.
