Six 680; Horny Hornyphon; (ID = 117207) Radio
Horny Hornyphon;: Six 680 [Radio] ID = 117207 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Six 680, Horny (Hornyphon); Wien:
Hornyphon Six

Country:  Austria

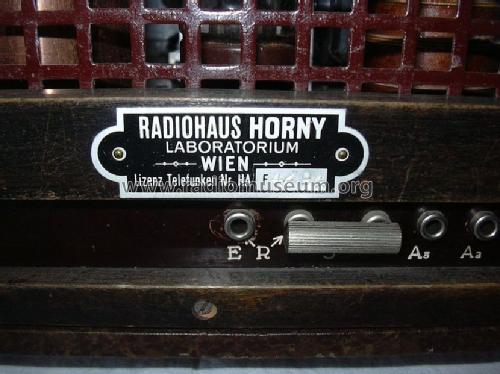

Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: E442 E428 E442 E442 E415 E443N 1561
schematic requested
Main principle Superheterodyne (common)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 155; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Six 680 - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 230 x 250 mm / 17.3 x 9.1 x 9.8 inch
Notes

Gerät wurde in zwei Ausführungen gefertigt, Holz mit Lederüberzug oder Bakelitausführung.

5 Wellenbereiche:

12 m ... 30 m
18 m ... 45 m
36 m ... 90 m
200 m ... 600 m
1000 m ... 2000 m

Wurde auch als Six Schrank 1821 (ohne Plattenspieler) und 1822 & 1822e (mit Plattenspieler) gefertigt.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 780.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
