For model W303L mit LS, Horny (Hornyphon); Wien:
Hornyphon Type W 303L

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: E452T E442 C443 506
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details

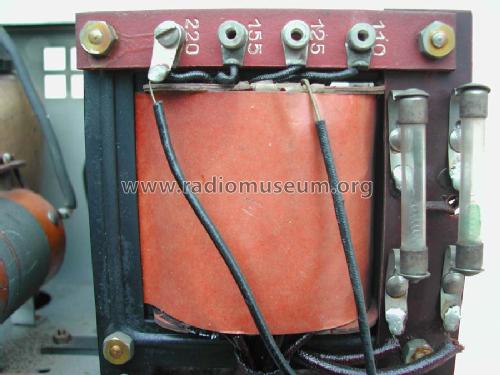

Power type and voltage Alternating Current supply (AC) / 110; 125; 155; 220 Volt
Loudspeaker Induction Loudspeaker (very rare !) / Ø 30 cm = 11.8 inch
Power out
from Radiomuseum.org Model: W303L [mit LS] - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 410 x 470 x 170 mm / 16.1 x 18.5 x 6.7 inch
Notes Meldung durch Rui Sequeira-Seidl. Netzempfänger W301 mit eingebautem Hornyphon Farrand Induktor Dynamic Lautsprecher.
Net weight (2.2 lb = 1 kg) 8.8 kg / 19 lb 6.1 oz (19.383 lb)
Price in first year of sale 440.00 ATS
Collectors' prices
Source of data -- Schematic / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Horny (Hornyphon); Wien
Here you find 865 models, 772 with images and 576 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Horny Hornyphon;: W303L
Threads: 1 | Posts: 2
Hits: 1607     Replies: 1
hornyphon: W303; B:41cm,H:48,5cm,T:18cm
Jürgen Kern
24.Sep.04
  1
Eilert Menke
24.Sep.04
  2 Hallo Herr Kern,

vielen Dank für die Abmessungen. Sie können Sie zum Gerät via "Änderungsvorschläge" zum Modellblatt hochladen.
