• Country
• United States of America (USA)

• Manufacturer / Brand
• Howard Radio Company; Chicago (IL)

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 44722

• Number of Tubes
• 13

• Valves / Tubes
• 58 58 56 58 58 56 56 56 42 42 82 56 57

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

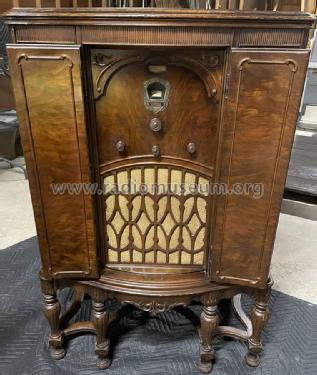

• Model: M - Howard Radio Company; Chicago

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• Class B amplification

• Price in first year of sale
• 139.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Other Models

• Here you find 354 models, 152 with images and 214 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
