• Year
  • 1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139466

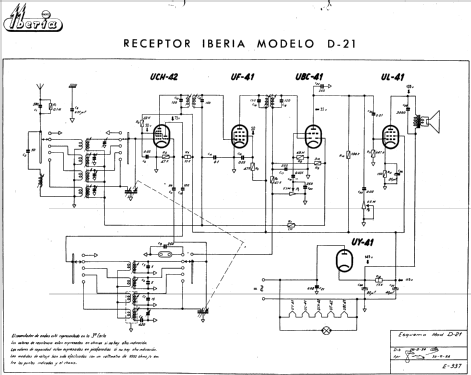

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

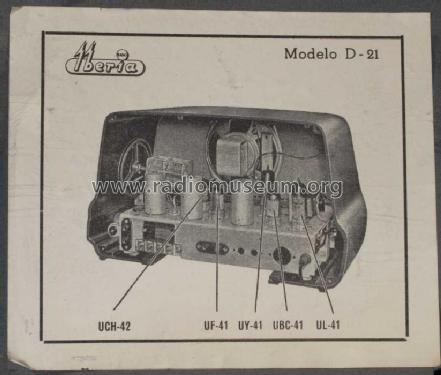

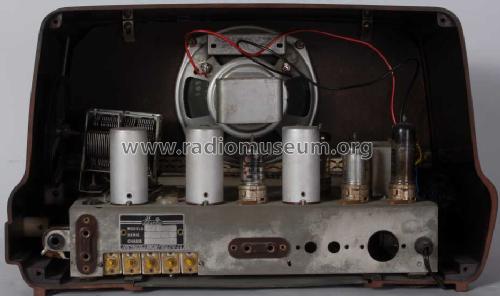

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • AC/DC-set / 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

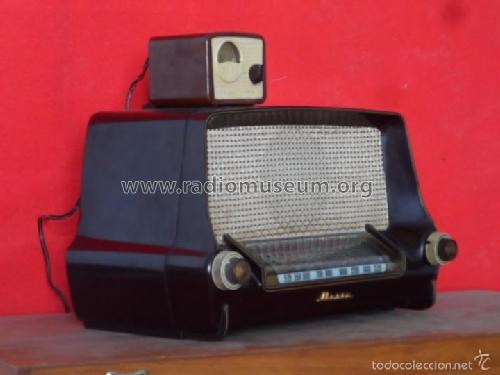

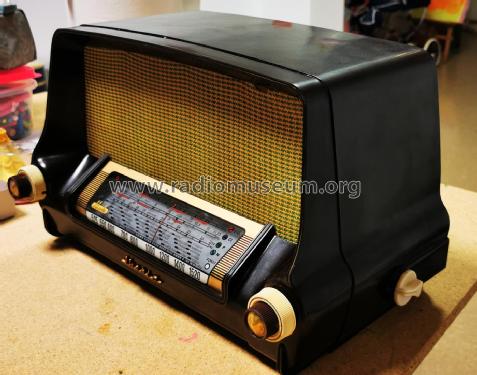

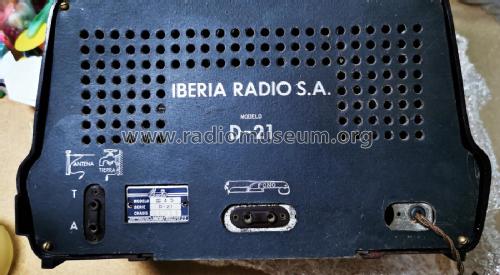

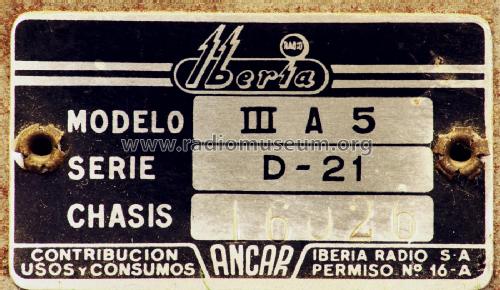

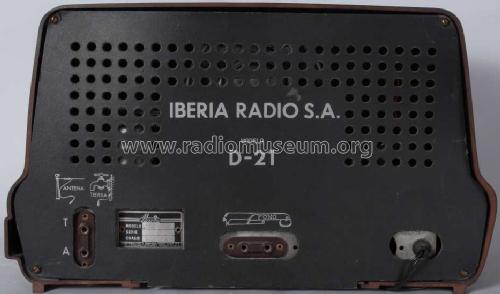

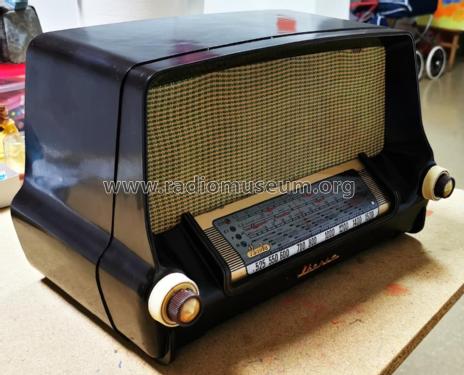

  • Model: D-21 - Iberia Radio SA; Barcelona
  • Dimensions (WHD)
  • 400 x 230 x 195 mm / 15.7 x 9.1 x 7.7 inch
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Francisco Gallego. See "Data change" for further contributors.
