• Country
• Spain

• Manufacturer / Brand
• Iberia Radio SA; Barcelona

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154058

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EF41 EBC41 EL84 EZ80

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100; 125; 150 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

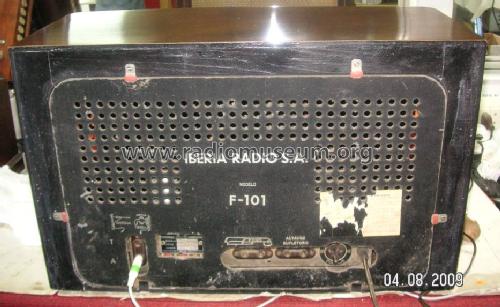

• Model: F-101 - Iberia Radio SA; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Mentioned in
• Revista Española de Electrónica, nº 1, diciembre 1954; La Vanguardia Española 16-11-1954

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
