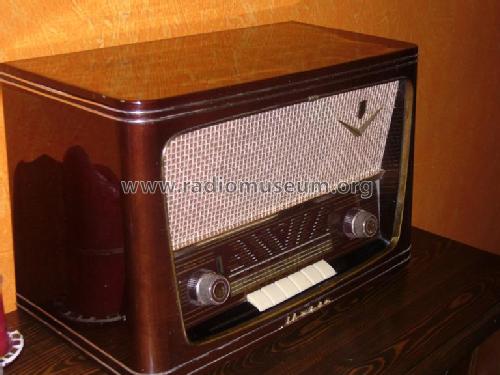

G-316 up to ser.154500
Iberia Radio SA; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Iberia Radio SA; Barcelona
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 118762
copy from parallel model.
copy from parallel model.
copy from parallel model.
copy from parallel model.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: G-316 [up to ser.154500] - Iberia Radio SA; Barcelona
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- There is a later series with different tube complement. Los aparatos desde el numero 152001 al 154500 van equipados con valvulas miniatura, y del 154501 en adelante con valvulas noval.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Jose Antonio Gonzalez-Ruiz. See "Data change" for further contributors.
