• Country
• Spain

• Manufacturer / Brand
• Iberia Radio SA; Barcelona

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273929

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• AC/DC-set / 110/130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

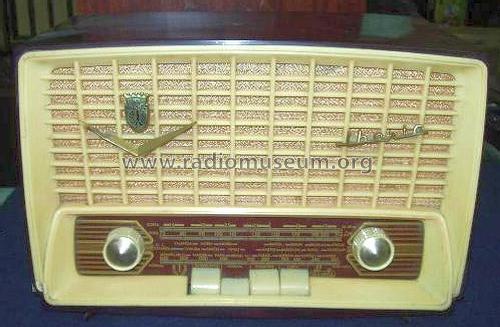

• Model: K-221 [UCH41] - Iberia Radio SA; Barcelona

• Shape
• Tablemodel, with any shape - general.

• Literature/Schematics (2)
• -- Schematic

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
