• Country
• Spain

• Manufacturer / Brand
• Iberia Radio SA; Barcelona

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106613

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

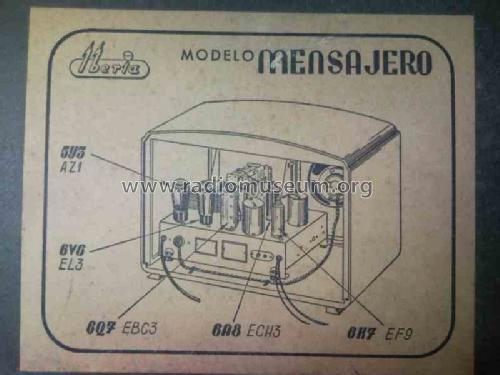

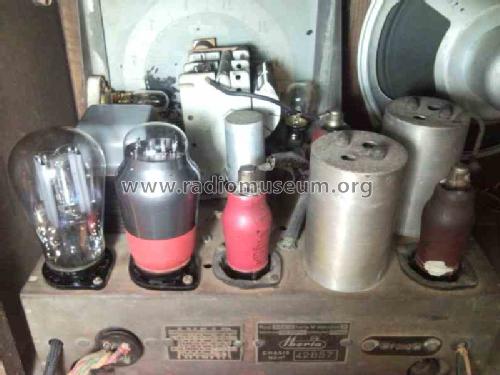

• ECH3 EF9 EBC3 EL3 AZ1 or 1883

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mensajero [P8A tubes] - Iberia Radio SA; Barcelona

• Shape
• Tablemodel, with any shape - general.

• Notes

• Iberia Radio, S.A., modelo Mensajero

  Véase también Mensajero con válvulas octal.

• Price in first year of sale
• 2,736.50 Pts

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Jose Antonio Gonzalez-Ruiz. See "Data change" for further contributors.
