Esagamma IF71 (V Serie)

Esagamma IF71; Imca Radio; (ID = 620699) Radio

Esagamma IF71; Imca Radio; (ID = 620700) Radio

Esagamma IF71; Imca Radio; (ID = 620701) Radio

Esagamma IF71; Imca Radio; (ID = 620702) Radio

Esagamma IF71; Imca Radio; (ID = 620703) Radio

Esagamma IF71; Imca Radio; (ID = 620704) Radio
Esagamma IF71; Imca Radio; (ID = 743004) Radio Esagamma IF71; Imca Radio; (ID = 466108) Radio
Esagamma IF71; Imca Radio; (ID = 466109) Radio Esagamma IF71; Imca Radio; (ID = 429674) Radio
Esagamma IF71; Imca Radio; (ID = 598282) Radio Esagamma IF71; Imca Radio; (ID = 743005) Radio
Esagamma IF71; Imca Radio; (ID = 1226858) Radio Esagamma IF71; Imca Radio; (ID = 1405830) Radio
Esagamma IF71; Imca Radio; (ID = 1405832) Radio Esagamma IF71; Imca Radio; (ID = 1405833) Radio
Use red slider bar for more.

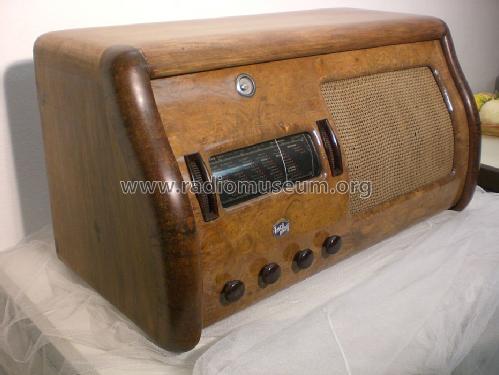

Esagamma IF71; Imca Radio; (ID = 743004) Radio
Imca Radio;: Esagamma IF71 [Radio] ID = 743004 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Esagamma IF71 (V Serie), Imca Radio; Alessandria

Country:  Italy
Manufacturer / Brand:  Imca Radio; Alessandria
Year: 1943 ?? Category: Broadcast Receiver - or past WW2 Tuner

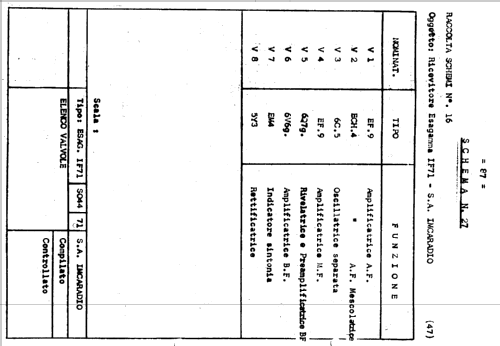

Valves / Tubes 8: EF9 ECH4 6C5 EF9 EM4 6Q7 6V6 5Y3
Main principle Superhet with RF-stage
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-275 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Esagamma IF71 - Imca Radio; Alessandria
Material Wooden case

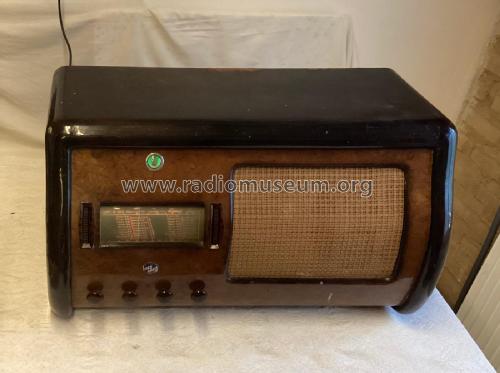

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 720 x 380 x 355 mm / 28.3 x 15 x 14 inch
Notes Cambio gamma a tamburo rotante. Gamme d'onda: 2 medie e 4 corte.
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
