Multigamma IF81 EF8

Imca Radio; Alessandria

  • Year
  • 1938 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 324979

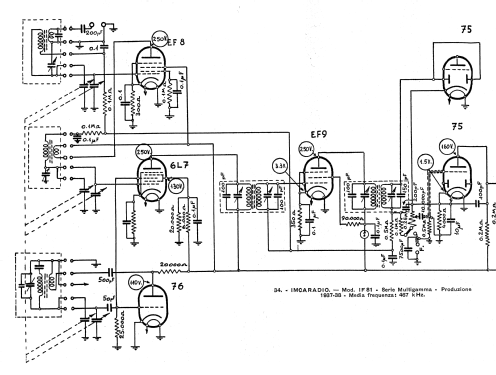

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 467 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 220; 275 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • from Radiomuseum.org
  • Model: Multigamma IF81 [EF8] - Imca Radio; Alessandria
  • Notes
  • Cambio gamma a tamburo rotante, brevetto Italo Filippa. 8 gamme d'onda.
    Controllo di tono. Ingresso per giradischi.
    Variante dell'omonimo modello Multigamma IF 81 con altra serie di valvole.

  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
