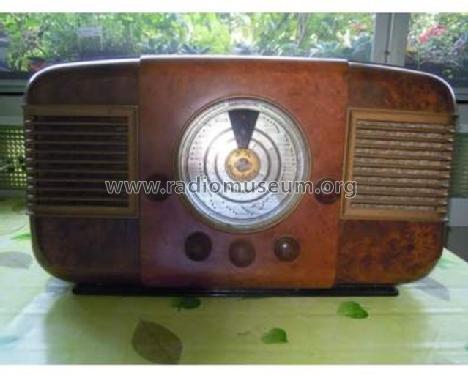

Nicoletta IF51 (I serie)

Nicoletta IF51 ; Imca Radio; (ID = 424580) Radio
Nicoletta IF51 ; Imca Radio; (ID = 2301972) Radio Nicoletta IF51 ; Imca Radio; (ID = 1196288) Radio
Nicoletta IF51 ; Imca Radio; (ID = 84746) Radio Nicoletta IF51 ; Imca Radio; (ID = 359487) Radio
Nicoletta IF51 ; Imca Radio; (ID = 359488) Radio Nicoletta IF51 ; Imca Radio; (ID = 359489) Radio
Nicoletta IF51 ; Imca Radio; (ID = 359491) Radio Nicoletta IF51 ; Imca Radio; (ID = 708158) Radio
Nicoletta IF51 ; Imca Radio; (ID = 1278954) Radio Nicoletta IF51 ; Imca Radio; (ID = 1278955) Radio
Use red slider bar for more.
Nicoletta IF51 ; Imca Radio; (ID = 2301972) Radio
Imca Radio;: Nicoletta IF51 [Radio] ID = 2301972 1400x907
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nicoletta IF51 (I serie), Imca Radio; Alessandria

Country:  Italy
Manufacturer / Brand:  Imca Radio; Alessandria
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BA6 6BE6 6AT6 6AQ5 6X4
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220;280 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Nicoletta IF51 - Imca Radio; Alessandria
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 560 x 240 x 330 mm / 22 x 9.4 x 13 inch
Notes

Lo schema indica anzichè la valvola 6AT6 una 6TE6 evidentemente erroneamente in quanto la medesima non esiste.
Onde Corte e Cortissime con allargamento di banda continuo tramite condensatore variabile e comando sintonia separato.
Presa per cuffia ad alta impedenza derivata dall'anodo della finale audio.

Mentioned in -- Schematic (Schemi di Apparecchi Radio D.E. Ravalico - Hoepli - 1953)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
