Pangamma AM/FM IF122

Pangamma AM/FM IF122; Imca Radio; (ID = 382995) Radio Pangamma AM/FM IF122; Imca Radio; (ID = 382996) Radio
Pangamma AM/FM IF122; Imca Radio; (ID = 383006) Radio Pangamma AM/FM IF122; Imca Radio; (ID = 205128) Radio
Pangamma AM/FM IF122; Imca Radio; (ID = 382999) Radio Pangamma AM/FM IF122; Imca Radio; (ID = 383003) Radio
Pangamma AM/FM IF122; Imca Radio; (ID = 383007) Radio Pangamma AM/FM IF122; Imca Radio; (ID = 383010) Radio
Pangamma AM/FM IF122; Imca Radio; (ID = 383012) Radio Pangamma AM/FM IF122; Imca Radio; (ID = 383013) Radio
Use red slider bar for more.

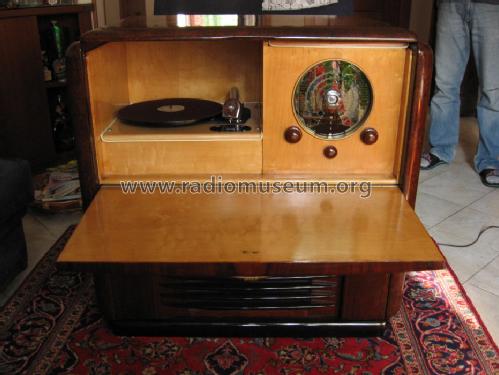

Pangamma AM/FM IF122; Imca Radio; (ID = 382995) Radio
Imca Radio;: Pangamma AM/FM IF122 [Radio] ID = 382995 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pangamma AM/FM IF122, Imca Radio; Alessandria

Country:  Italy
Manufacturer / Brand:  Imca Radio; Alessandria
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 6BA6 6J6 6BE6 6AU6 EM4 6AU6 6AU6 6AL5 6AT6 6BA6 6AQ5 6X4 6X4
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: Pangamma AM/FM IF122 - Imca Radio; Alessandria
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 890 x 880 x 470 mm / 35 x 34.6 x 18.5 inch
Notes Vari tipi cambiadischi / different types of record changers used.
Net weight (2.2 lb = 1 kg) 56 kg / 123 lb 5.6 oz (123.348 lb)
Source of data -- Original-techn. papers.

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.



All listed radios etc. from Imca Radio; Alessandria
Here you find 77 models, 50 with images and 30 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
