• Year
  • 1964/1965
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 116247

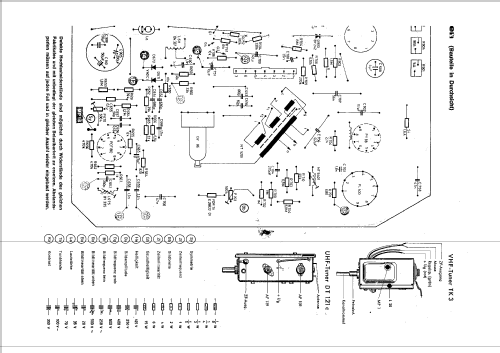

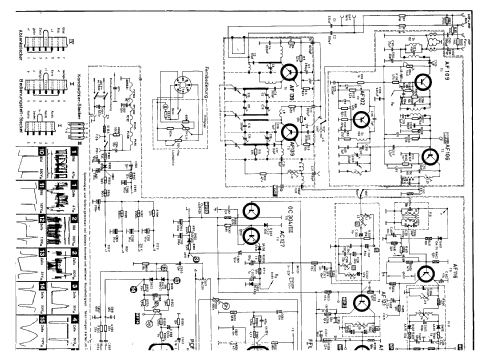

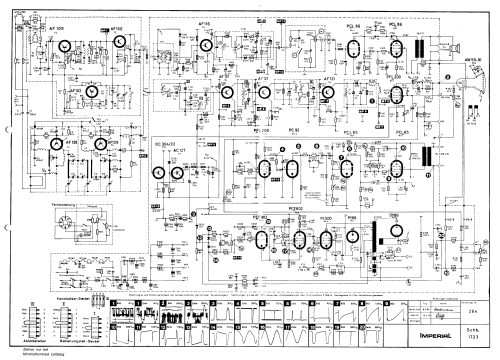

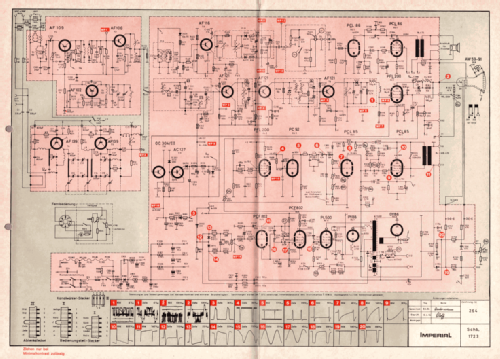

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Number of Transistors
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Komet Ch= 1723 - Imperial Rundfunk und Fernseh
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 860 x 920 x 430 mm / 33.9 x 36.2 x 16.9 inch
  • Notes
  • VHF/UHF.
  • Price in first year of sale
  • 2,108.00 DM
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
