Astronaut 1616

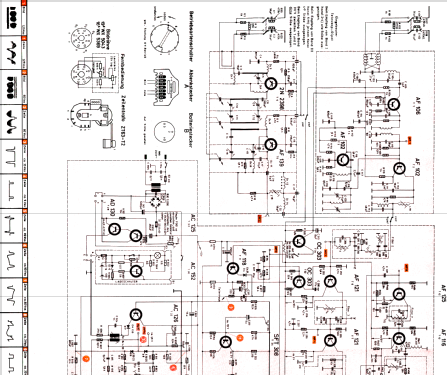

Astronaut 1616; Imperial Rundfunk (ID = 389588) Television

Astronaut 1616; Imperial Rundfunk (ID = 389589) Television

Astronaut 1616; Imperial Rundfunk (ID = 389592) Television

Astronaut 1616; Imperial Rundfunk (ID = 389593) Television

Astronaut 1616; Imperial Rundfunk (ID = 389594) Television
Astronaut 1616; Imperial Rundfunk (ID = 323617) Television Astronaut 1616; Imperial Rundfunk (ID = 292571) Television
Use red slider bar for more.
Astronaut 1616; Imperial Rundfunk (ID = 323617) Television
Imperial Rundfunk: Astronaut 1616 [Television] ID = 323617 269x296
Select picture or schematic to display from thumbnails on the right and click for download.
For model Astronaut 1616, Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

Country:  Germany
Manufacturer / Brand:  Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
Year: 1963–1965 Category: Television Receiver (TV) or Monitor
Valves / Tubes 2: DY80 WX5369
Semiconductors (the count is only for transistors) 34: AF106 AF102 AF102 2N2398 AF139 OC303 AF121 OC303 AF121 AF121 AF116 AF118 AF118 SFT308 OC44 OC70 AC128 AC125 AD132 AC125 AD133 AC152 AC126 BCZ10 OC44 OC139 AC126 AC128 MP939 AF125 AF116 AC126 AC121 AD148 AA112 B30C200 B217_Diode BYY36 E50C5 EB45-1-1 OA9 OA70 OA91 OA150 OA161 SZ15
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Astronaut 1616 - Imperial Rundfunk und Fernseh
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 420 x 350 x 290 mm / 16.5 x 13.8 x 11.4 inch
Notes

VHF Tuner Typ TK 2
UHF Tuner Typ DT 121a

16"/41-cm-Portable TV.

Betrieb aus aus 12-V-Autobatterie über Vorsatzgerät möglich; schnurloser Betrieb für 7 Betriebsstunden aus Batteriesatz, der als Vollkassette an Gerät angehängt wird;
Baugleich mit Kuba Astronaut 1616.

Price in first year of sale 1'482.00 DM
Source of data Handbuch VDRG 1963/1964
Literature/Schematics (1) -- Original-techn. papers.
