• Year
  • 1965/1966
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 110919

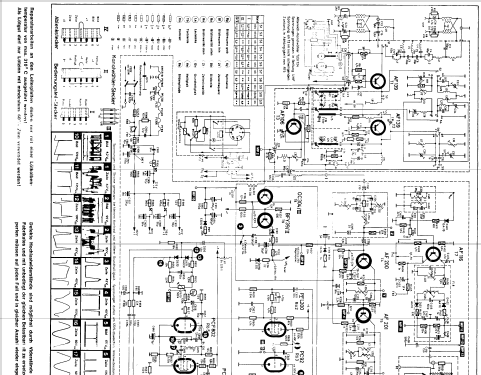

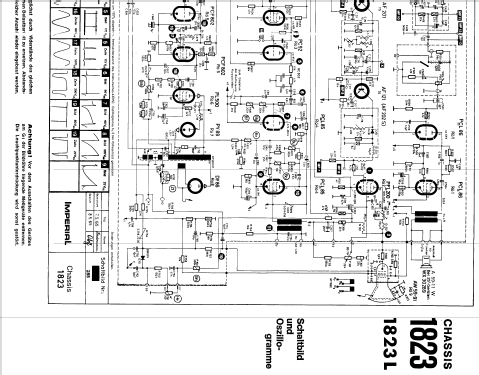

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org

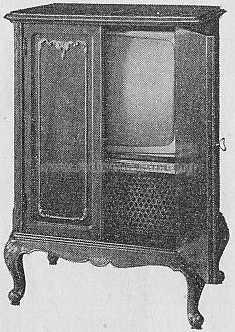

  • Model: Bordeaux Ch= 1823 - Imperial Rundfunk und Fernseh
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 720 x 1010 x 460 mm / 28.3 x 39.8 x 18.1 inch
  • Notes
  • VHF/UHF. Technische Daten wie Toronto, jedoch andere Bildröhre.
  • Net weight (2.2 lb = 1 kg)
  • 50 kg / 110 lb 2.1 oz (110.132 lb)
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
