CR2002

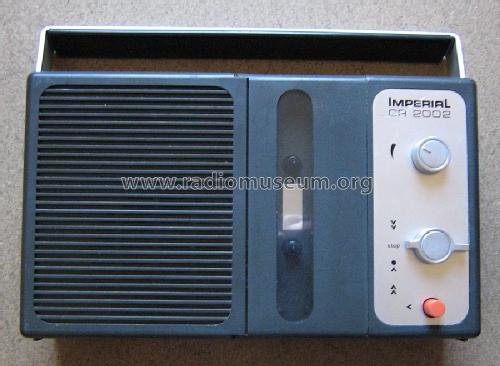

CR2002; Imperial Rundfunk (ID = 324454) R-Player CR2002; Imperial Rundfunk (ID = 839332) R-Player
CR2002; Imperial Rundfunk (ID = 839333) R-Player CR2002; Imperial Rundfunk (ID = 839334) R-Player
Use red slider bar for more.
CR2002; Imperial Rundfunk (ID = 324454) R-Player
Imperial Rundfunk: CR2002 [R-Player] ID = 324454 471x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model CR2002, Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

Country:  Germany
Manufacturer / Brand:  Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
Year: 1971–1973 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 5:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 7 cm = 2.8 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: CR2002 - Imperial Rundfunk und Fernseh
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 145 x 70 mm / 9.1 x 5.7 x 2.8 inch
Notes Zusätzliches Netzteil in Batteriefach einlegbar.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
