HF 100

HF 100; Imperial brand, (ID = 2176899) Ampl/Mixer HF 100; Imperial brand, (ID = 2176898) Ampl/Mixer
HF 100; Imperial brand, (ID = 2176901) Ampl/Mixer HF 100; Imperial brand, (ID = 2176903) Ampl/Mixer
Use red slider bar for more.
HF 100; Imperial brand, (ID = 2176899) Ampl/Mixer
Imperial brand,: HF 100 [Ampl/Mixer] ID = 2176899 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model HF 100, Imperial (brand), Imperial Radio e Televisori (IRT), Imperial Electronics; Milano

Country:  Italy
Manufacturer / Brand:  Imperial (brand), Imperial Radio e Televisori (IRT), Imperial Electronics; Milano
Year: 1983 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 90 W (max.)
from Radiomuseum.org Model: HF 100 - Imperial brand, Imperial Radio
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 375 x 125 x 300 mm / 14.8 x 4.9 x 11.8 inch
Notes

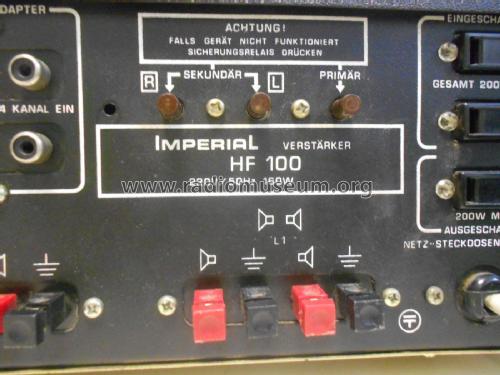

Amplificatore stereo integrato - controllo volume/toni alti/toni bassi/balance - potenza: 45 + 45 watt RMS su 8 Ohm - risposta in frequenza : 16 Hz - 32.000 Hz - distorsione armonica : 0,4 % - distorsione d'intermodulazione : 0,3 % - n. 7 ingressi - dinamica (rapporto S/N) : phono 77 dB - line: 89 dB - uscite : n, 2 registratori, n. 4 diffusori, cuffia - filtri : loudness, antifruscio/antirombo - n.3 fusibili interni (n. 1 primari /n. 2 secondari) - consumo: 160 watt - frontale serigrafato in alluminio pieno - lampadina d'accensione - commutatore mono/stereo - possibilità di separare preamplificatore/amplificatore - 4 kanal adapter - n. 3 prese posteriori 220 v (1 switch/ 2 unswitch) - morsetto di terra.



Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
