• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1972/1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28750

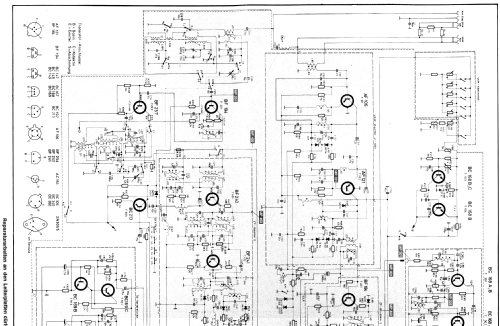

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 40

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 235; 250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

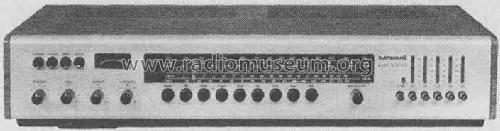

• Model: HiFi 2700 [Nussbaum] - Imperial Rundfunk und Fernseh

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 550 x 106 x 265 mm / 21.7 x 4.2 x 10.4 inch

• Notes
• Hi-Fi-Stereo-Steuergerät. Stereo-NF-Verstärker mit 2 Endstufen je 24 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 948.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb
