Imperial J 50GW (bzw. I50GW), GW50

Imperial J 50GW , GW50; Continental-Rundfunk (ID = 8025) Radio

Imperial J 50GW , GW50; Continental-Rundfunk (ID = 312509) Radio
Imperial J 50GW , GW50; Continental-Rundfunk (ID = 595019) Radio Imperial J 50GW , GW50; Continental-Rundfunk (ID = 277059) Radio
Imperial J 50GW , GW50; Continental-Rundfunk (ID = 595020) Radio Imperial J 50GW , GW50; Continental-Rundfunk (ID = 277060) Radio

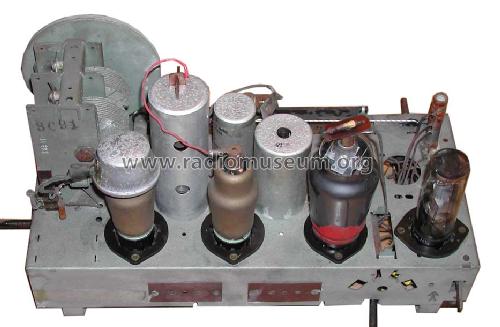

Imperial J 50GW , GW50; Continental-Rundfunk (ID = 595021) Radio Imperial J 50GW , GW50; Continental-Rundfunk (ID = 595022) Radio
Imperial J 50GW , GW50; Continental-Rundfunk (ID = 955989) Radio
Use red slider bar for more.
Imperial J 50GW , GW50; Continental-Rundfunk (ID = 595019) Radio
Continental-Rundfunk: Imperial J 50GW , GW50 [Radio] ID = 595019 933x688
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial J 50GW (bzw. I50GW), GW50, Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz:
Eigenes Bild.

Country:  Germany
Manufacturer / Brand:  Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH5 UCH5 UBL3 UY3
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Imperial J 50GW , GW50 - Continental-Rundfunk GmbH
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 285 x 230 mm / 16.5 x 11.2 x 9.1 inch
Notes Schaltung der NF-Gegenkopplung von Imperial 50GW ab Geräte-Nr. 3669 geändert, nun über beide NF-Stufen wirksam.
Price in first year of sale 295.00 DM
External source of data Rutishauser/EE
Source of data Illustrierter Rundfunk Kat. 1949 / Radiokatalog Band 2, Ernst Erb
Mentioned in Funkgeschichte der GFGF (Band 7 "Continental-Rundfunk GmbH")
Literature/Schematics (1) -- Original-techn. papers.
