- Country
- Germany
- Manufacturer / Brand
- Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Year
- 1963/1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 282953
by courtesy of the owner
by courtesy of the owner

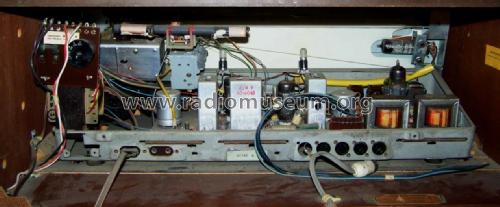

panneau arrière
by courtesy of the owner
by courtesy of the owner
by courtesy of the owner
by courtesy of the owner
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); Export model
- Tuned circuits
- 6 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz; 110 - 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ravenna Ch= 664 Export - Imperial Rundfunk und Fernseh
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1100 x 750 x 390 mm / 43.3 x 29.5 x 15.4 inch
- Notes
-
Platine stéréo de marque " Impérial ".
- Author
- Model page created by Claude Boulet. See "Data change" for further contributors.
