• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1965/1966

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 110924

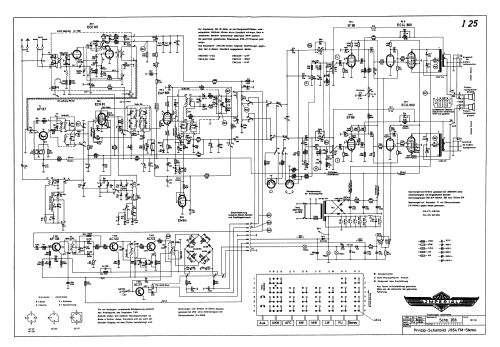

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

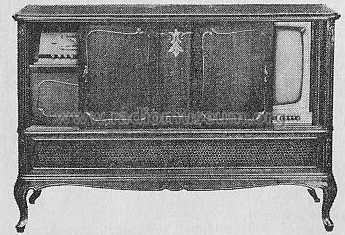

• Model: Traviata-Antik Ch= J864 TV-Ch= 1823 - Imperial Rundfunk und Fernseh

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1590 x 1010 x 500 mm / 62.6 x 39.8 x 19.7 inch

• Notes
• Fernseh-Chassis = 1823 wie in Toronto, jedoch mit Bildröhre A59-11W;
  Rundfunk-Chassis = 864 Stereo, Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 7 W;
  Phono-Chassis = k. A.

• Net weight (2.2 lb = 1 kg)
• 100 kg / 220 lb 4.2 oz (220.264 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
