Redpoint

Redpoint ; Incar S.r.l.; (ID = 1033977) Radio Redpoint ; Incar S.r.l.; (ID = 1033976) Radio

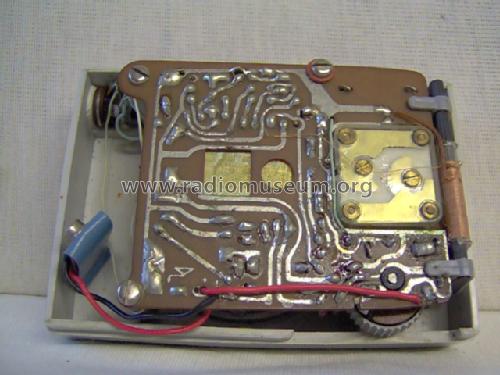

Redpoint ; Incar S.r.l.; (ID = 1033979) Radio
Use red slider bar for more.
Redpoint ; Incar S.r.l.; (ID = 1033977) Radio
Incar S.r.l.;: Redpoint [Radio] ID = 1033977 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Redpoint, Incar S.r.l.; Vercelli

Country:  Italy
Manufacturer / Brand:  Incar S.r.l.; Vercelli
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Redpoint - Incar S.r.l.; Vercelli
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 110 x 70 x 30 mm / 4.3 x 2.8 x 1.2 inch

Model page created by Pasquale Baiocato. See "Data change" for further contributors.



All listed radios etc. from Incar S.r.l.; Vercelli
Here you find 86 models, 49 with images and 43 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
