• Country
• Italy

• Manufacturer / Brand
• Indesit; Ancona

• Year
• 1973 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151424

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 1 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / AC 230; DC 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

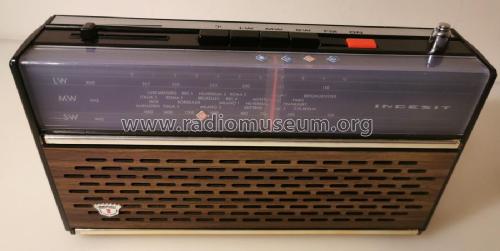

• Model: LW MW SW R15 - Indesit; Ancona

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 165 x 70 mm / 11.8 x 6.5 x 2.8 inch

• Notes
• NF-Stufe: TBA820.

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Rein Tiezema † 27.3.16. See "Data change" for further contributors.
