Astrad Altair

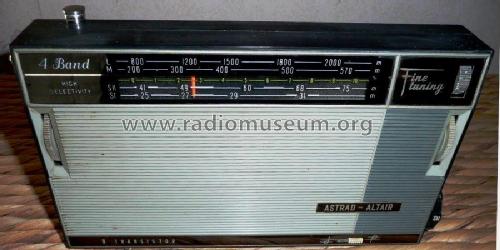

Astrad Altair ; Industrial Union (ID = 1976828) Radio Astrad Altair ; Industrial Union (ID = 1976832) Radio

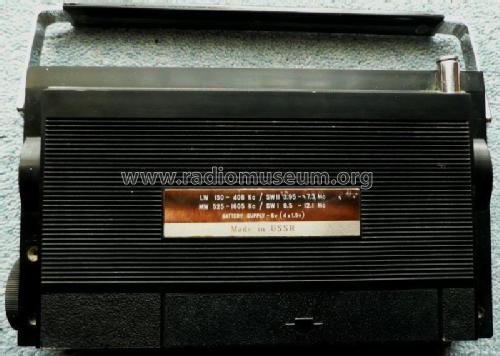

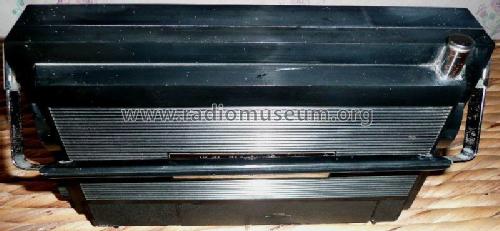

Astrad Altair ; Industrial Union (ID = 1976837) Radio Astrad Altair ; Industrial Union (ID = 1976838) Radio
Use red slider bar for more.

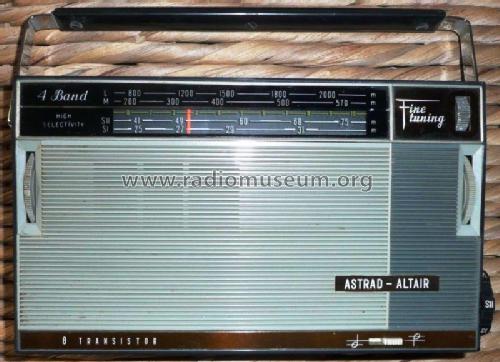

Astrad Altair ; Industrial Union (ID = 1976828) Radio
Industrial Union: Astrad Altair [Radio] ID = 1976828 800x580
Select picture or schematic to display from thumbnails on the right and click for download.
For model Astrad Altair, Industrial Union Poliot, Cheliabinsk:
Ebay item no. 252326579853 seller wrennie15

Country:  Soviet Union
Manufacturer / Brand:  Industrial Union Poliot, Cheliabinsk
alternative name

Cheliabinsk Radio Works IU "Poliot"
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Astrad Altair - Industrial Union Poliot,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 215 x 125 x 47 mm / 8.5 x 4.9 x 1.9 inch
Notes

The Altair superhet receiver has the following wave bands:

  • LW: 150 - 408 kHz (2000 m - 735.3 m)
  • MW: 525 - 1605 kHz (571.4 m - 186.9 m)
  • SW1: 9.5 - 12.1 MHz (31.5 m - 25 m)
  • SW2: 3.95 - 7.3 MHz (75 m - 41 m)

It employs 8 transistors and 2 diodes, using 4 separate OSC coils plus AGC. The set has built-in ferrite rod and telescopic antennas, sockets for external aerial and earphones, and it features a slow motion tuning mechanism.

Similar to the Astrad 4TR8-M304 and Vega Sapphire 4TR8-M304 models.

Made in the USSR.

Export version of the Rossiâ {Россия} 301

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by Howard Craven. See "Data change" for further contributors.
