Mezon - Мезон 201

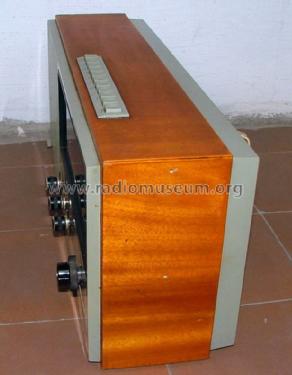

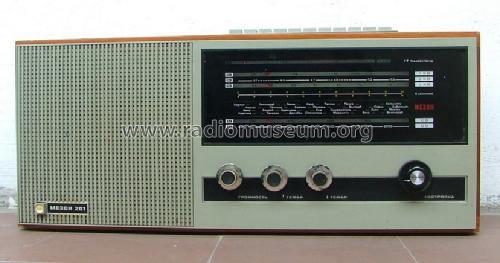

Mezon - Мезон 201; Industrial Union (ID = 1096540) Radio Mezon - Мезон 201; Industrial Union (ID = 1096539) Radio

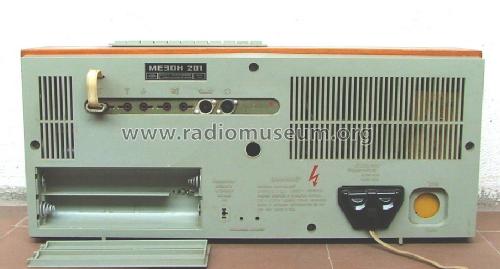

Mezon - Мезон 201; Industrial Union (ID = 1096541) Radio Mezon - Мезон 201; Industrial Union (ID = 1096542) Radio

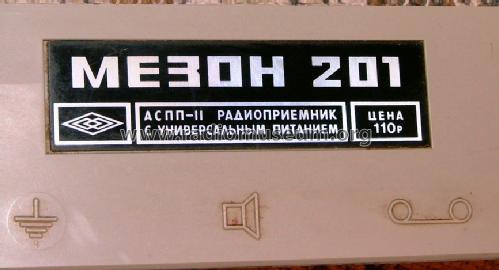

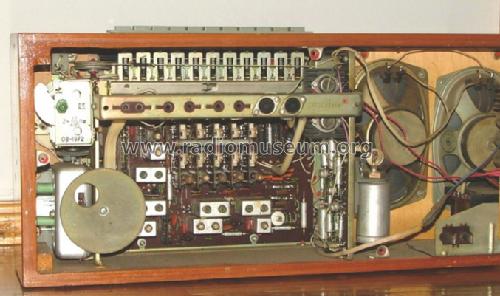

Mezon - Мезон 201; Industrial Union (ID = 1096543) Radio Mezon - Мезон 201; Industrial Union (ID = 1096544) Radio
Use red slider bar for more.

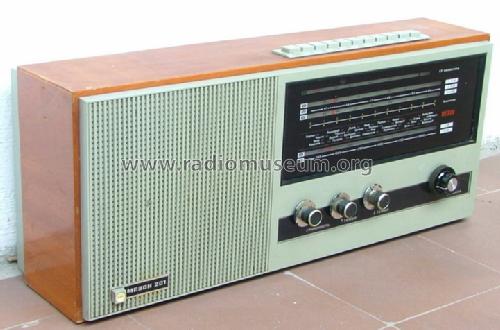

Mezon - Мезон 201; Industrial Union (ID = 1096540) Radio
Industrial Union: Mezon - Мезон 201 [Radio] ID = 1096540 721x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mezon - Мезон 201, Industrial Union Poliot, Cheliabinsk:
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Industrial Union Poliot, Cheliabinsk
alternative name

Cheliabinsk Radio Works IU "Poliot"
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 127; 220 / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Mezon - Мезон 201 - Industrial Union Poliot,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 128 x 320 x 225 mm / 5 x 12.6 x 8.9 inch
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 110.00 RUR
Collectors' prices
Source of data - - Data from my own collection

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Industrial Union Poliot, Cheliabinsk
Here you find 20 models, 19 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
