Rodina {Родина} 59

Rodina {Родина} 59; Industrial Union (ID = 392614) Radio
Use red slider bar for more.
Rodina {Родина} 59; Industrial Union (ID = 392614) Radio

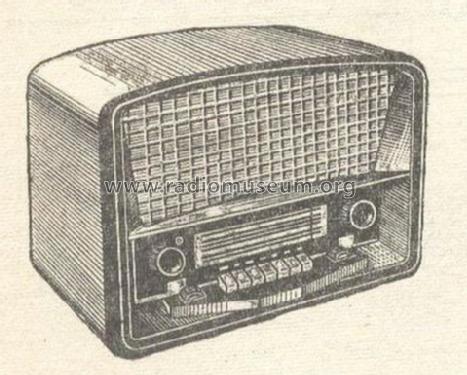

Industrial Union: Rodina {Родина} 59 [Radio] ID = 392614 480x385
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rodina {Родина} 59, Industrial Union Poliot, Cheliabinsk

Country:  Soviet Union
Manufacturer / Brand:  Industrial Union Poliot, Cheliabinsk
alternative name

Cheliabinsk Radio Works IU "Poliot"
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 1И2П 1К2П 1К2П
Semiconductors (the count is only for transistors) 5:
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 127; 220 / 1,2 & 6 & 60 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Rodina {Родина} 59 - Industrial Union Poliot,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 310 x 255 mm / 18.9 x 12.2 x 10 inch
Notes Tubes (HF - heterodyne,IF) and transistors (low-frequency amplifier).
Mentioned in E.A. Levitin "Radio sets" Moscow 1967

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
