Ajax W

Ajax W ; Ingelen, (ID = 662472) Radio

Ajax W ; Ingelen, (ID = 9332) Radio

Ajax W ; Ingelen, (ID = 984267) Radio
Use red slider bar for more.
Ajax W ; Ingelen, (ID = 662472) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AF3 AF7 AL1 AZ1
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Ajax W - Ingelen, Elektrotechnische
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

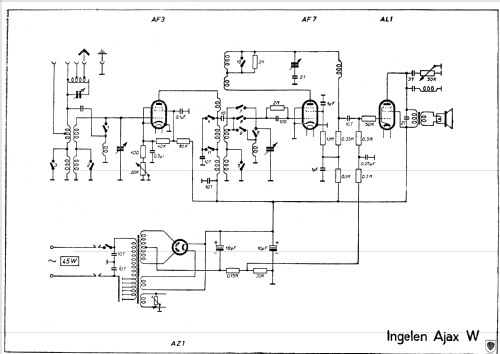

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
