Columbus 39W ohne EM1

Columbus 39W; Ingelen, (ID = 638735) Radio

Columbus 39W; Ingelen, (ID = 638483) Radio

Columbus 39W; Ingelen, (ID = 340679) Radio

Columbus 39W; Ingelen, (ID = 48738) Radio

Columbus 39W; Ingelen, (ID = 26178) Radio
Columbus 39W; Ingelen, (ID = 134056) Radio Columbus 39W; Ingelen, (ID = 134060) Radio
Columbus 39W; Ingelen, (ID = 134058) Radio Columbus 39W; Ingelen, (ID = 134057) Radio
Columbus 39W; Ingelen, (ID = 49717) Radio Columbus 39W; Ingelen, (ID = 151527) Radio
Columbus 39W; Ingelen, (ID = 151528) Radio Columbus 39W; Ingelen, (ID = 151529) Radio
Columbus 39W; Ingelen, (ID = 151530) Radio Columbus 39W; Ingelen, (ID = 495269) Radio
Use red slider bar for more.
Columbus 39W; Ingelen, (ID = 134056) Radio
Ingelen,: Columbus 39W [Radio] ID = 134056 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Columbus 39W ohne EM1, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen Columbus 39W

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EK2 EF9 EBL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128,5 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Columbus 39W [ohne EM1] - Ingelen, Elektrotechnische
Material Wooden case

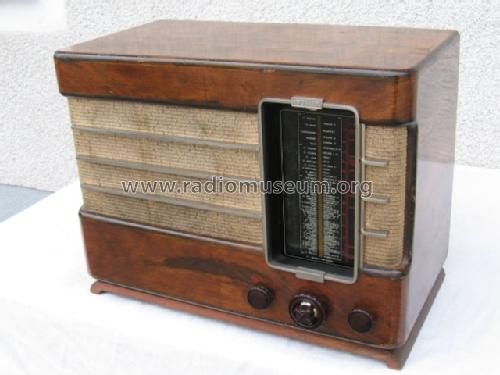

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 463 x 352 x 250 mm / 18.2 x 13.9 x 9.8 inch
Notes
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 228.00 RM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Handbuch WDRG 1938 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 437 models, 383 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
