Cosmos (?) (Geographic) US437G

Cosmos US437G; Ingelen, (ID = 628686) Radio

Cosmos US437G; Ingelen, (ID = 628687) Radio

Cosmos US437G; Ingelen, (ID = 9369) Radio
Cosmos US437G; Ingelen, (ID = 1728) Radio
Use red slider bar for more.
Cosmos US437G; Ingelen, (ID = 1728) Radio

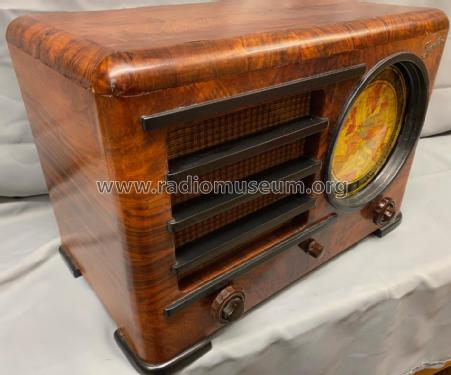

Ingelen,: Cosmos US437G [Radio] ID = 1728 577x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cosmos (?) (Geographic) US437G, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CK1 CF7 CB2 CL4 C1 U1220-6_8-pin(P8A)
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Direct Current supply (DC) / 200-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Cosmos US437G - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes "Geographic"
Price in first year of sale 468.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 438 models, 385 with images and 318 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
