• Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 62834
    • Brand: Elektrot.Fabrik Ludwig Neumann

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • AC/DC-set
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

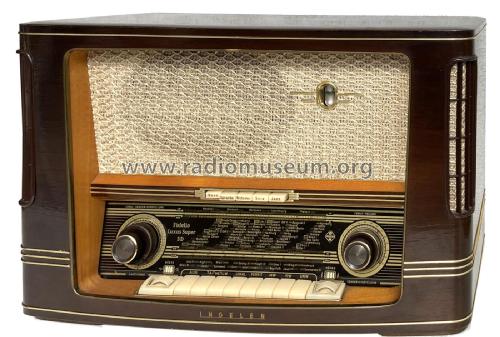

  • Model: Fidelio 57 3D Luxus Super GW - Ingelen, Elektrotechnische
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 610 x 385 x 245 mm / 24 x 15.2 x 9.6 inch
  • Notes
  • TrGl.
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Gerhard Heigl. See "Data change" for further contributors.
