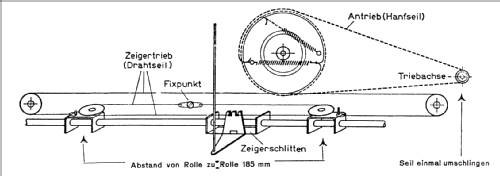

Genius 650GW; Ingelen, (ID = 346793) Radio

Genius 650GW; Ingelen, (ID = 701924) Radio

Genius 650GW; Ingelen, (ID = 1310642) Radio

Genius 650GW; Ingelen, (ID = 1310699) Radio
Genius 650GW; Ingelen, (ID = 233952) Radio Genius 650GW; Ingelen, (ID = 818001) Radio
Genius 650GW; Ingelen, (ID = 818002) Radio Genius 650GW; Ingelen, (ID = 701905) Radio

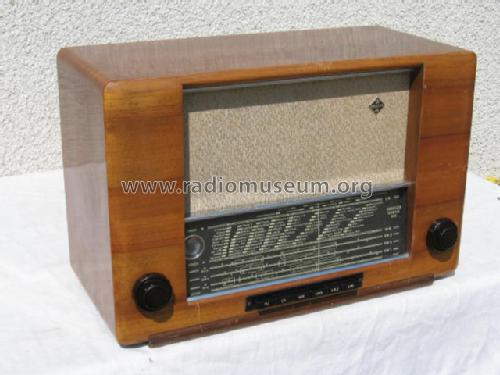

Genius 650GW; Ingelen, (ID = 818000) Radio Genius 650GW; Ingelen, (ID = 233953) Radio
Genius 650GW; Ingelen, (ID = 233954) Radio
Use red slider bar for more.
Genius 650GW; Ingelen, (ID = 233952) Radio
Ingelen,: Genius 650GW [Radio] ID = 233952 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Genius 650GW, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen Genius 650GW

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UAF42 UL41 UM4 UY41 NTK NTK
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Genius 650GW - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 340 x 260 mm / 20.1 x 13.4 x 10.2 inch
Notes 3 x KW
Net weight (2.2 lb = 1 kg) 8.3 kg / 18 lb 4.5 oz (18.282 lb)
Price in first year of sale 1'690.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
