Golf TR415

Golf TR415; Ingelen, (ID = 65734) Radio

Golf TR415; Ingelen, (ID = 65735) Radio

Golf TR415; Ingelen, (ID = 65736) Radio

Golf TR415; Ingelen, (ID = 1314061) Radio

Golf TR415; Ingelen, (ID = 1314062) Radio

Golf TR415; Ingelen, (ID = 1314064) Radio

Golf TR415; Ingelen, (ID = 1314065) Radio

Golf TR415; Ingelen, (ID = 1314067) Radio

Golf TR415; Ingelen, (ID = 1314068) Radio

Golf TR415; Ingelen, (ID = 1314069) Radio
Golf TR415; Ingelen, (ID = 1748202) Radio Golf TR415; Ingelen, (ID = 247775) Radio

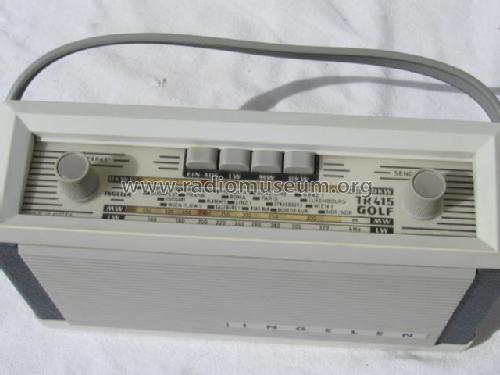

Golf TR415; Ingelen, (ID = 247779) Radio Golf TR415; Ingelen, (ID = 247777) Radio
Golf TR415; Ingelen, (ID = 145656) Radio Golf TR415; Ingelen, (ID = 247776) Radio
Use red slider bar for more.

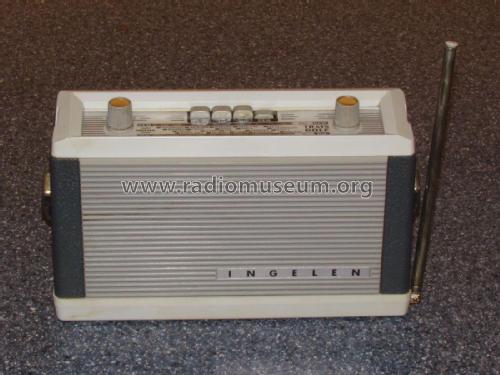

Golf TR415; Ingelen, (ID = 1748202) Radio
Ingelen,: Golf TR415 [Radio] ID = 1748202 1100x825
Select picture or schematic to display from thumbnails on the right and click for download.
For model Golf TR415, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF124 AF125 AF126 AF126 AF126 OC71 OC71 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 459 or 468/10700 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4x3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Golf TR415 - Ingelen, Elektrotechnische
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 215 x 135 x 65 mm / 8.5 x 5.3 x 2.6 inch
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 1'265.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 437 models, 384 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
