• Country
• Austria

• Manufacturer / Brand
• Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62857

• • Brand: Elektrot.Fabrik Ludwig Neumann

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• CS9016 CS9018 CS9018 CS1312 CS9018 CS1312 CS1312 2SA562 2SC735 1N34A CD0000 1N60 CD0021 B30C100

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

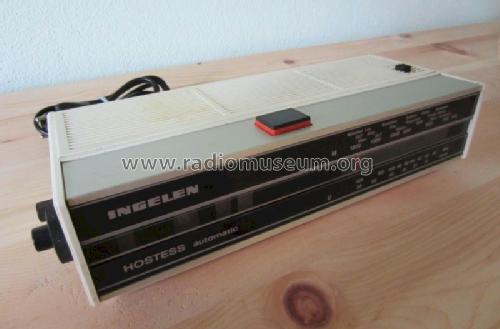

• Model: Hostess automatic 301 5241.03.19 - Ingelen, Elektrotechnische

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 292 x 74 x 112 mm / 11.5 x 2.9 x 4.4 inch

• Notes

• Ingelen Hostess 301 ist ein Radiowecker mit netzbetriebener Synchronuhr. Wecken mit Radio oder Signalton.

  2 Ausführungen:

  • Hostess 301 5241.03.19, Gehäuse weiss
  • Hostess 301 5241.03.17, Gehäuse Holzdekor

  Made by ITT

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

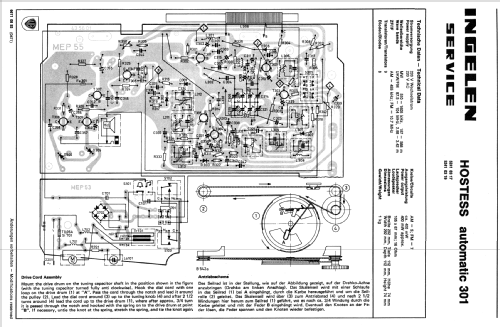

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
