For model portable TR200c, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen TR200c

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: DK96 DF96
Semiconductors (the count is only for transistors) 5: OC71 OC71 OC72 OC72 OC76 or. OC72 OA79 OA85 or. OA81
Main principle Superheterodyne (common); ZF/IF 459 kHz; 4 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 2x4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: portable TR200c - Ingelen, Elektrotechnische
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 150 x 67 mm / 8.7 x 5.9 x 2.6 inch
Notes

KW - Bereich 37m - 81m.

Reflexstufe: ZF/NF (DF96)

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Price in first year of sale 1'460.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

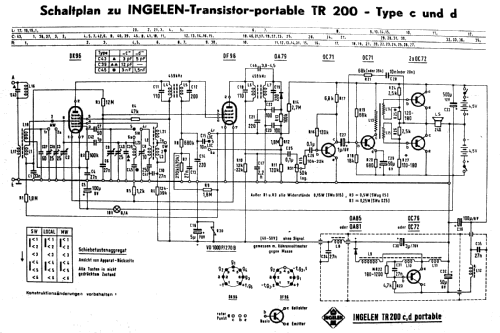

Circuit diagram reference Unterlagen E.Erb
Mentioned in Museums Bote, Österr. (Heft 127/2005, S.5 ff, Gerätebeschreibung u. Varianten)
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
