• Year
  • 1965/1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 9171
    • Brand: Elektrot.Fabrik Ludwig Neumann

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 459 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 4x3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org

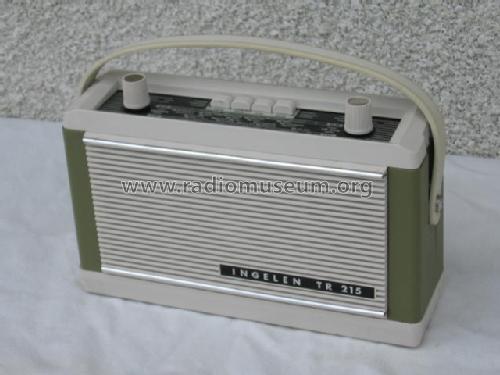

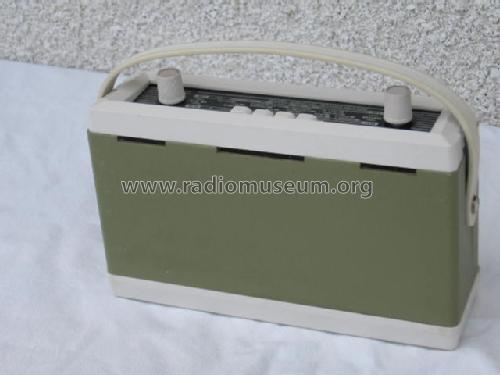

  • Model: TR215 - Ingelen, Elektrotechnische
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 215 x 135 x 65 mm / 8.5 x 5.3 x 2.6 inch
  • Notes
  • 2 Ausführungen: rot und grün.
  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)
  • Price in first year of sale
  • 860.00 ATS
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Unterlagen E.Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
