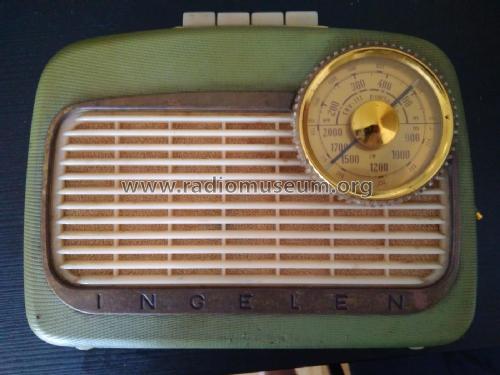

TRV111 Portable; Ingelen, (ID = 2318971) Radio
Ingelen,: TRV111 Portable [Radio] ID = 2318971 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model TRV111 Portable, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 459 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2x4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TRV111 Portable - Ingelen, Elektrotechnische
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 150 x 68 mm / 8.7 x 5.9 x 2.7 inch
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 1'395.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

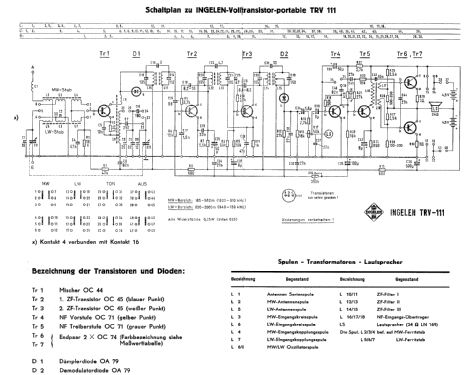

Circuit diagram reference Unterlagen E.Erb

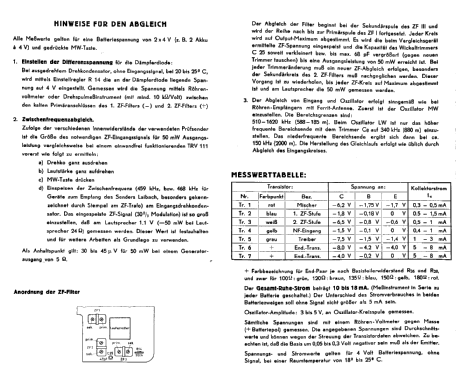

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 437 models, 383 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Ingelen,: TRV111 Portable
Threads: 1 | Posts: 1
Hits: 1879     Replies: 0
ingelen: TRV111
Gerhard Heigl
17.Sep.02
  1 Transistoren: 2xOC45, OC44, 2xOC71, 2xOC72
