Phono U2WM

Phono U2WM; Ingelen, (ID = 73717) Radio Phono U2WM; Ingelen, (ID = 1464122) Radio
Phono U2WM; Ingelen, (ID = 1464126) Radio Phono U2WM; Ingelen, (ID = 1464131) Radio
Phono U2WM; Ingelen, (ID = 2340577) Radio
Use red slider bar for more.

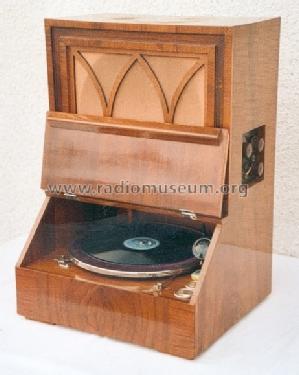

Phono U2WM; Ingelen, (ID = 73717) Radio
Ingelen,: Phono U2WM [Radio] ID = 73717 462x579
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phono U2WM, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen Type U2WM (mit Plattenlaufwerk)

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: E438 B443 1801
schematic requested
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast (MW) and Long Wave.

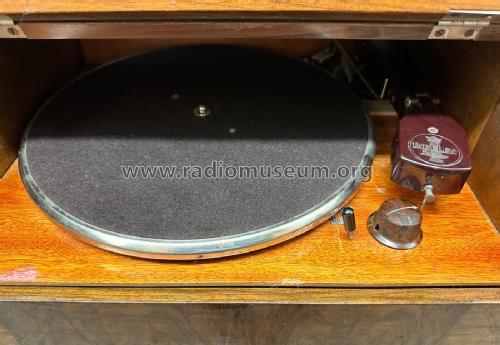

Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt

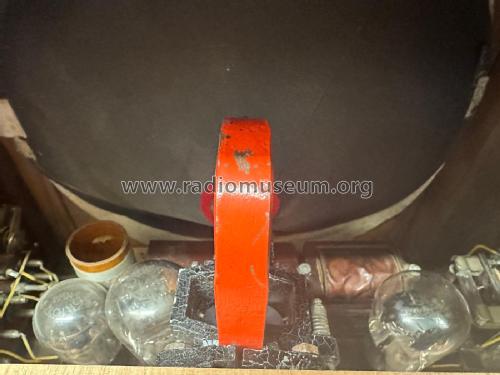

Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles).
Power out
from Radiomuseum.org Model: Phono U2WM - Ingelen, Elektrotechnische

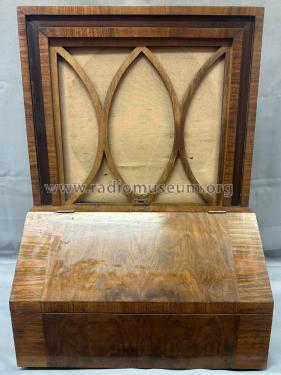

Material Wooden case

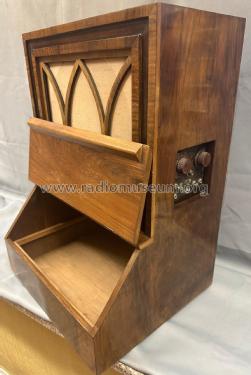

Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Price in first year of sale 598.00 ATS
External source of data Sammlung Alios Steiner
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert (Neuheiten 1931/32)

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
