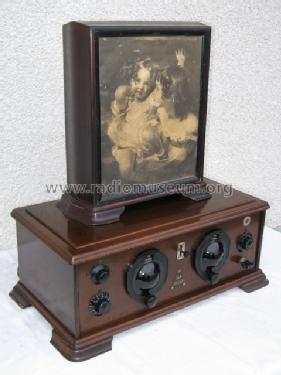

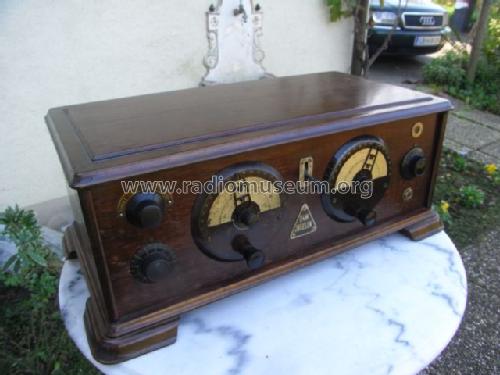

For model U4W, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen U4W

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E442 E424 E438 B405 or B443 506
Main principle TRF without regeneration
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: U4W - Ingelen, Elektrotechnische
Material Wooden case

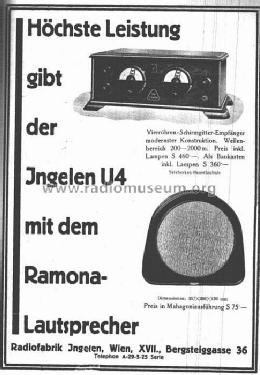

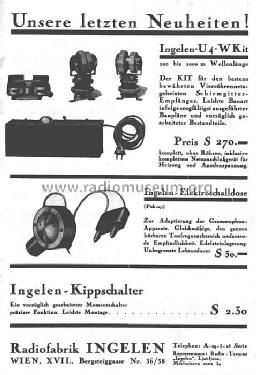

Notes Schirmgitter-Fernempfänger. Wellenbereich: 200 bis 2000 m. Preis incl. Röhren. (auch als Bausatz).
Price in first year of sale 700.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
