U7 Ultradyne 8097 (U7)

U7 Ultradyne 8097 ; Ingelen, (ID = 115754) Radio U7 Ultradyne 8097 ; Ingelen, (ID = 115755) Radio

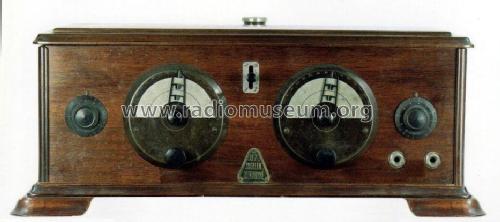

U7 Ultradyne 8097 ; Ingelen, (ID = 115751) Radio U7 Ultradyne 8097 ; Ingelen, (ID = 87944) Radio
U7 Ultradyne 8097 ; Ingelen, (ID = 115756) Radio U7 Ultradyne 8097 ; Ingelen, (ID = 115758) Radio
U7 Ultradyne 8097 ; Ingelen, (ID = 115760) Radio U7 Ultradyne 8097 ; Ingelen, (ID = 115759) Radio
U7 Ultradyne 8097 ; Ingelen, (ID = 115757) Radio U7 Ultradyne 8097 ; Ingelen, (ID = 3708) Radio
Use red slider bar for more.

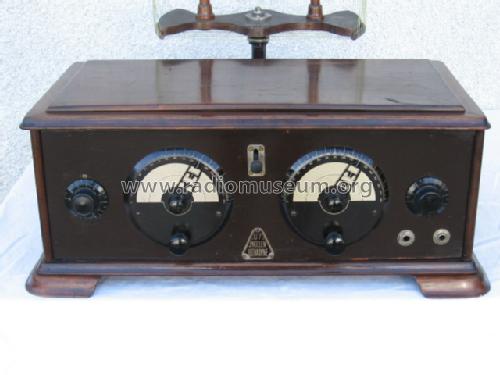

U7 Ultradyne 8097 ; Ingelen, (ID = 115754) Radio
Ingelen,: U7 Ultradyne 8097 [Radio] ID = 115754 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model U7 Ultradyne 8097 (U7), Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen U7

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1928/1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: B406 B406 A409 A409 A409 A415 B443
schematic requested
Main principle Superheterodyne (common)
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: U7 Ultradyne 8097 - Ingelen, Elektrotechnische
Material Wooden case
Notes org. Preis incl. Röhren
Price in first year of sale 510.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Historische Radios Band V (46B)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 438 models, 385 with images and 318 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
