UKW-Untersatzsuper 554GW für Columbus und Cosmos

UKW-Untersatzsuper 554GW; Ingelen, (ID = 68287) Converter

UKW-Untersatzsuper 554GW; Ingelen, (ID = 137226) Converter

UKW-Untersatzsuper 554GW; Ingelen, (ID = 137227) Converter

UKW-Untersatzsuper 554GW; Ingelen, (ID = 137233) Converter

UKW-Untersatzsuper 554GW; Ingelen, (ID = 1894336) Converter

UKW-Untersatzsuper 554GW; Ingelen, (ID = 1894337) Converter

UKW-Untersatzsuper 554GW; Ingelen, (ID = 1894338) Converter

UKW-Untersatzsuper 554GW; Ingelen, (ID = 1894339) Converter

UKW-Untersatzsuper 554GW; Ingelen, (ID = 1894340) Converter

UKW-Untersatzsuper 554GW; Ingelen, (ID = 1894341) Converter
UKW-Untersatzsuper 554GW; Ingelen, (ID = 2035353) Converter UKW-Untersatzsuper 554GW; Ingelen, (ID = 759913) Converter
UKW-Untersatzsuper 554GW; Ingelen, (ID = 63982) Converter UKW-Untersatzsuper 554GW; Ingelen, (ID = 63983) Converter
UKW-Untersatzsuper 554GW; Ingelen, (ID = 3530) Converter UKW-Untersatzsuper 554GW; Ingelen, (ID = 63985) Converter
Use red slider bar for more.
UKW-Untersatzsuper 554GW; Ingelen, (ID = 2035353) Converter
Ingelen,: UKW-Untersatzsuper 554GW [Converter] ID = 2035353 990x518
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW-Untersatzsuper 554GW für Columbus und Cosmos, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:

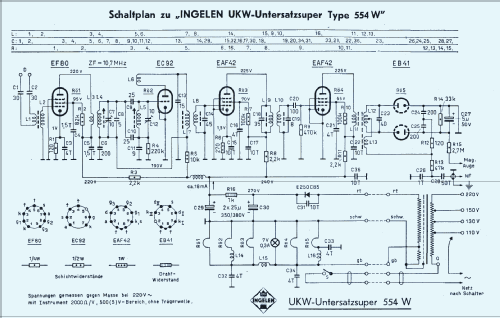

Bild aus Servicedoku.

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1954 Category: Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
Valves / Tubes 5: UF80 UC92 UAF42 UAF42 UB41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 10700 kHz
Tuned circuits 9 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage AC/DC-set / 110, 130, 150, 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: UKW-Untersatzsuper 554GW [für Columbus und Cosmos] - Ingelen, Elektrotechnische
Material Wooden case
Dimensions (WHD) 410 x 50 x 182 mm / 16.1 x 2 x 7.2 inch
Notes 87 bis 100 MHz für Columbus und Cosmos
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Price in first year of sale 688.00 öS
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert
Literature/Schematics (1) RADIOBOTE, Österr. (Heft 30/2010, S.6, Gerätebeschreibung)
