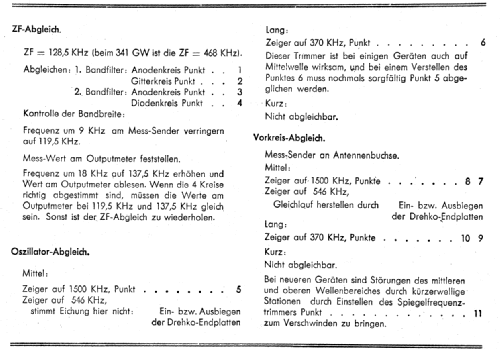

Select picture or schematic to display from thumbnails on the right and click for download.
For model U - Super 338W, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EK2 EF5 EBL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128,5 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: U - Super 338W - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 363 x 250 mm / 17.7 x 14.3 x 9.8 inch
Notes

Sparschaltung. Variable Bandbreite, mit Klangregler gekoppelt.

Metallstreifen vor dem Lautsprecher.
Siehe auch Exportausführung 338W für die Schweiz.

Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
