Magnetofono AM-63 con ECC81

Magnetofono AM-63; Ingra; Barcelona (ID = 606259) R-Player

Magnetofono AM-63; Ingra; Barcelona (ID = 1027112) R-Player
Magnetofono AM-63; Ingra; Barcelona (ID = 1498156) R-Player Magnetofono AM-63; Ingra; Barcelona (ID = 1498153) R-Player
Magnetofono AM-63; Ingra; Barcelona (ID = 1498154) R-Player Magnetofono AM-63; Ingra; Barcelona (ID = 1498155) R-Player
Magnetofono AM-63; Ingra; Barcelona (ID = 1498157) R-Player Magnetofono AM-63; Ingra; Barcelona (ID = 1498158) R-Player
Magnetofono AM-63; Ingra; Barcelona (ID = 1498159) R-Player
Use red slider bar for more.

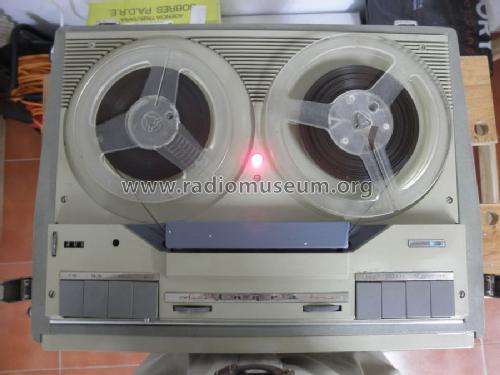

Magnetofono AM-63; Ingra; Barcelona (ID = 1498156) R-Player
Ingra; Barcelona: Magnetofono AM-63 [R-Player] ID = 1498156 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetofono AM-63 con ECC81, Ingra; Barcelona

Country:  Spain
Manufacturer / Brand:  Ingra; Barcelona
Year: 1963 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 ECC81 ECC81 EL84 EM84
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Magnetofono AM-63 [con ECC81] - Ingra; Barcelona
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 420 x 190 x 320 mm / 16.5 x 7.5 x 12.6 inch
Notes

En la medida del ancho, no se considera el asa de transporte fijada en su lado derecho.

Su considerable peso se explica porque el chásis es muy sólido, de hierro fundido, al que hay que sumar el peso del motor, más que suficientemente dimensionado, y los mecanismos de tracción de cinta, inversion de marchas, etc.

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
