• Country
• Italy

• Manufacturer / Brand
• INTEK S.p.A.; Milano

• Year
• 1989

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 190324

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 10700/455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

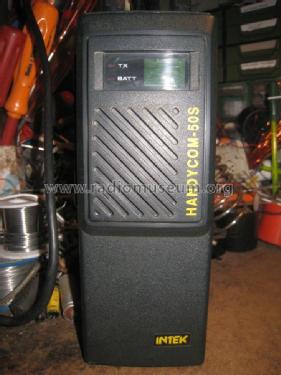

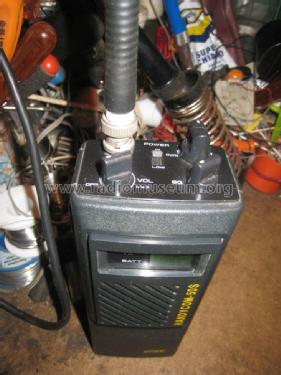

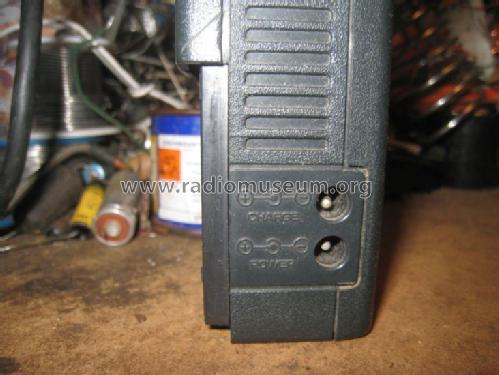

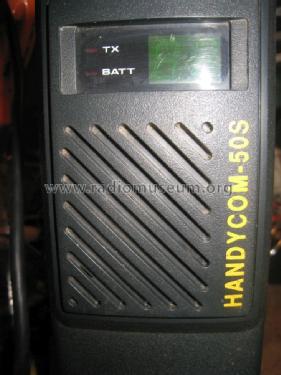

• Model: Portable CB Transceiver Handycom-50S - INTEK S.p.A.; Milano

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 68 x 200 x 55 mm / 2.7 x 7.9 x 2.2 inch

• Notes
• Frequency coverage from 26965 KHz to 27405 KHz on 40 channels.
  P.L.L. frequency control; RF output power 4 Watts (or 1 Watt); AM modulation; receiver sensitivity 0.5 microV; RF selectivity 60 dB at 10 KHz; squelch 0.5 microV.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Emilio Focosi. See "Data change" for further contributors.
