• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106597

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UABC80 UCH81 UL84 UF89 UY85

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 90/110/125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

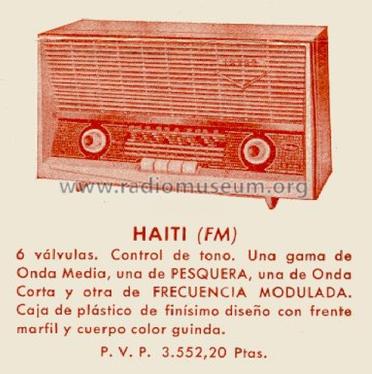

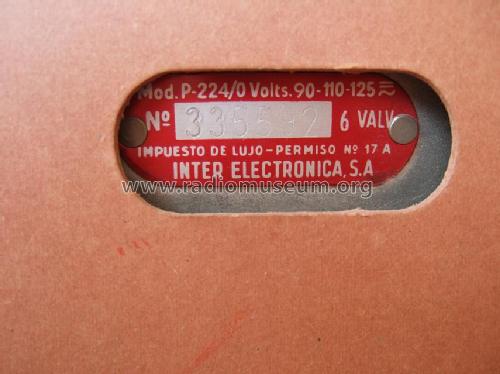

• Model: Haiti M.A. F.M. P-224/0 [with UF89] - Inter Electrónica, S.A., Inter

• Shape
• Tablemodel with Push Buttons.

• Notes
• Un de las ondas cortas es Banda Pesquera. One short wawe is Police band.

• Price in first year of sale
• 3,552.20 ESP

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.
