Horizonte Azul 560-A

Horizonte Azul 560-A; Inter Electronica S. (ID = 697340) Radio Horizonte Azul 560-A; Inter Electronica S. (ID = 697341) Radio
Horizonte Azul 560-A; Inter Electronica S. (ID = 697343) Radio Horizonte Azul 560-A; Inter Electronica S. (ID = 695555) Radio
Horizonte Azul 560-A; Inter Electronica S. (ID = 1364438) Radio Horizonte Azul 560-A; Inter Electronica S. (ID = 1364439) Radio
Horizonte Azul 560-A; Inter Electronica S. (ID = 1364440) Radio Horizonte Azul 560-A; Inter Electronica S. (ID = 1364442) Radio
Horizonte Azul 560-A; Inter Electronica S. (ID = 1380468) Radio Horizonte Azul 560-A; Inter Electronica S. (ID = 1380471) Radio
Use red slider bar for more.
Horizonte Azul 560-A; Inter Electronica S. (ID = 697340) Radio
Inter Electronica S.: Horizonte Azul 560-A [Radio] ID = 697340 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Horizonte Azul 560-A, Inter Electronica S.A.; Barcelona

Country:  Spain
Manufacturer / Brand:  Inter Electronica S.A.; Barcelona
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner

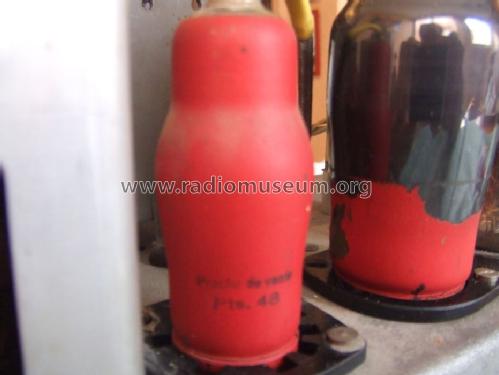

Valves / Tubes 5: ECH3 EF9 EBC3 EL3 AZ1
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Horizonte Azul 560-A - Inter Electronica S.A.;
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 420 x 270 x 21 mm / 16.5 x 10.6 x 0.8 inch

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
