Liberator TV-23LR /1-F
Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
- Year
- 1967 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 340576

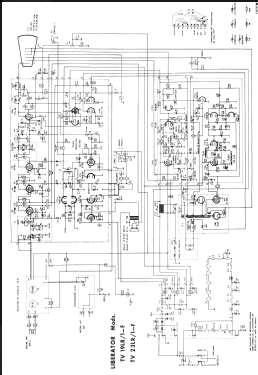

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PC97 PCF805 EF183 EF183 EF80 PCL84 PABC80 PCL82 EF80 12ET1 PABC80 PCF80 PL500 PY88 DY87 PCL85 A59-15W
- Number of Transistors
- 2
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Liberator TV-23LR /1-F - Inter Electrónica, S.A., Inter
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Inter Electrónica, S.A., TV-23LR /1-F
TV B/N 23" con selector rotativo de VHF Inter 43.21 y sintonizador UHF Inter 43.23
- Literature/Schematics (1)
- -- Schematic (Esquemario TV REDE, Tomo VI, 1970)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
