105 ; International Radio (ID = 914990) Radio

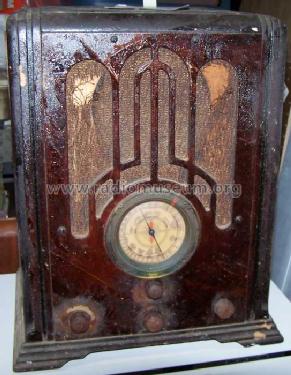

International Radio: 105 [Radio] ID = 914990 545x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 105, International Radio Corp (Kadette); Ann Arbor, MI.

Country:  United States of America (USA)
Manufacturer / Brand:  International Radio Corp (Kadette); Ann Arbor, MI.
alternative name

International All Wave || International Industries || International Kadette || IRC
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6D6 85 75 42 80
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 105 - International Radio Corp
Notes The export model has an additional long wave band and a supply voltage of 90-125, 150 or 250 V.
External source of data Ernst Erb

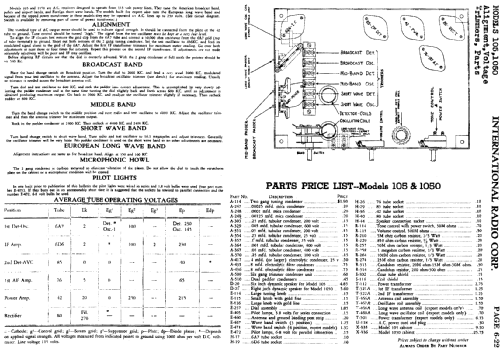

Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before


All listed radios etc. from International Radio Corp (Kadette); Ann Arbor, MI.
Here you find 192 models, 84 with images and 145 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
