• Country
• United States of America (USA)

• Manufacturer / Brand
• International Radio Corp (Kadette); Ann Arbor, MI.

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 44999

• • alternative name: International All Wave || International Industries || International Kadette || IRC

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A8 6K7 6Q7 25A7

• Number of Transistors

• Semiconductors
• K72B

• Main principle
• Superheterodyne (common); ZF/IF 448 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 118 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

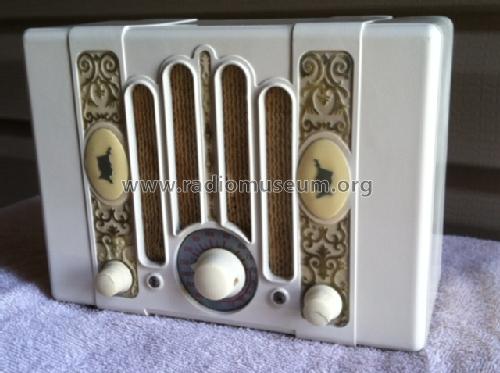

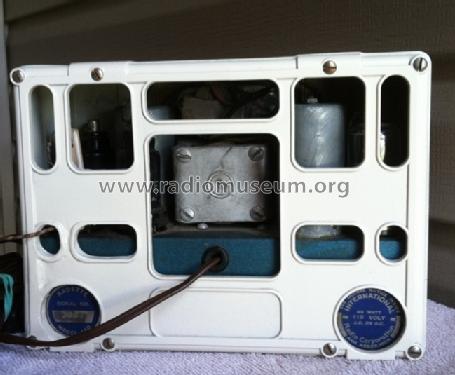

• Model: Kadette 150 Cameo - International Radio Corp

• Notes
• Ballast tube K72B.

  Please see also model "Kadette K-150 Cameo".



• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before
