• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 172044

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

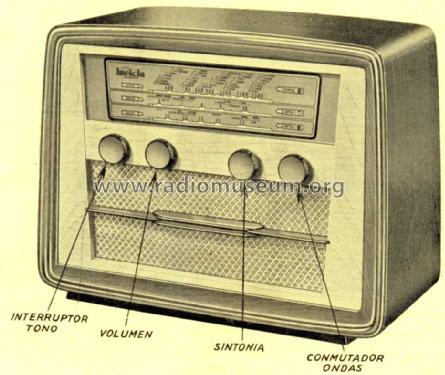

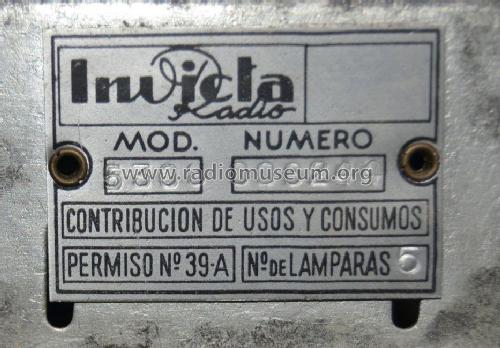

• Model: 5308 - Invicta Radio, Barcelona

• Shape
• Tablemodel, low profile (big size).

• Price in first year of sale
• 2,575.00 ESP

• Source of data
• -- Original prospect or advert

• Mentioned in
• Anuncio La Vanguardia Española noviembre 1952

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
